» Induction Coil (0846)
Immagini
DESCRIPTION
Exhibit 846 is spark coil for converting a low voltage current into a high voltage current. It is made by winding two solenoids on the same soft iron cylinder; a primary of a few turns of heavy wire and a secondary of many turns of fine wire. When the current at low voltage in the primary is interrupted, a current at a high voltage is induced in the secondary. This current can be used to draw sparks in air or, for example, drive an X-ray generator. According to the inventory, this spark coil produced sparks up to 35 cm in length.
BIBLIOGRAPHY

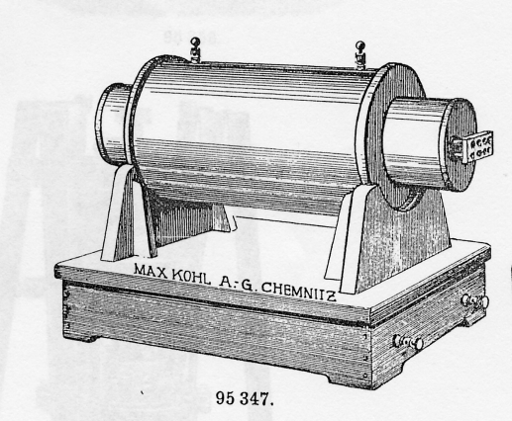

- [1] Catalogo No. 100, Tome III, "Appareils de physique", Max Kohl A.G. Chemnitz (Allemangne), Adorfer Strasse 20.Catalogue No.100,Tome III. Pag 984.
Dati Catalografici
Data di costruzione: | circa 1900 |
---|---|
Data di carico: | 1900-07-17 |
Nr. Inventario: | 211 (Consorzio Univ. di Torino) |
Costruttore: | Max Kohl |
Materiale: | legno, ferro |
Dimensioni: | Base: 61 cm x 36 cm x 15 cm; Rocchetto: Lunghezza 52 cm, Diametro 20 cm; Diametro interno: 8 cm |

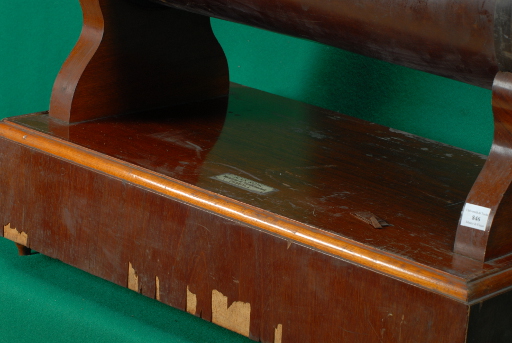

Conservazione: | cattivo ( Mancano il solenoide secondario e il nucleo di ferro. Inoltre la base di legno è priva di due piedini, e l'impiallacciatura in alcuni punti è mancante.) |
