» Compass Ring (0680)
Immagini
DESCRIPTION

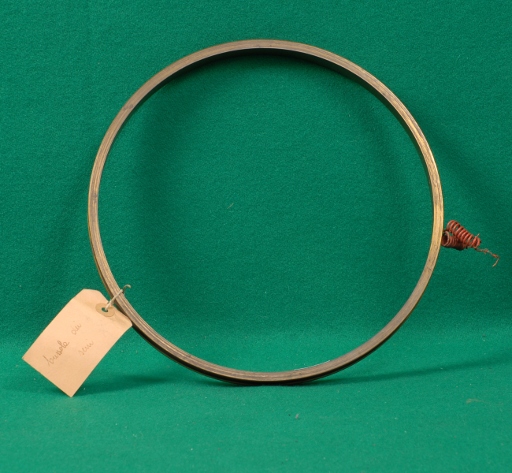

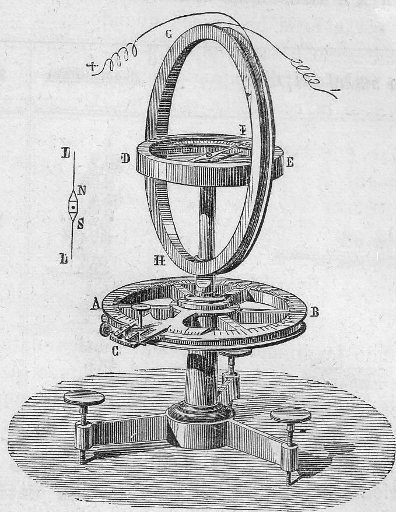

Exhibit 680 is a brass ring of diameter 1,5 cm with the outer surface in the shape of a "U" to facilitate winding a coil of a few turns (about 10). This ring was part of a rudimentary galvanometer in which the current in the coil created a magnetic field which rotated a permanent magnetic needle through an angle the sine of which was indicative of the current. The needle was suspended above by a torsion wire and fixed below. The image-1 was published in the volume of M. Zannotti and L. Pinto
BIBLIOGRAPHY
- [1] M. Zannotti e L. Pinto, Primi rudimenti di meccanica e fisica (Morano, Napoli 1877, III ed.)
Dati Catalografici
Data di costruzione: | Seconda metà XIX secolo |
---|---|
Data di carico: | 1883-07-07 |
Nr. Inventario: | 65 (Consorzio Univ. di Torino) |
Costruttore: | Sconosciuta |
Materiale: | rame, ottone |
Dimensioni: | Diametro: 234 mm; Larghezza: 15,5 mm |
Conservazione: | buono (L'anello è in buono stato ma manca tutto il resto ) |
