» Eight-Day Recording Thermometer (0463)
Immagini
DESCRIPTION

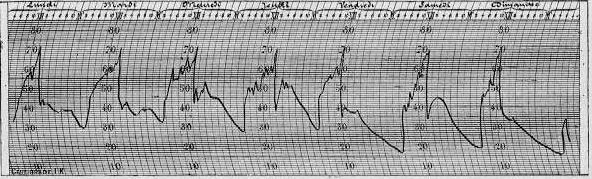

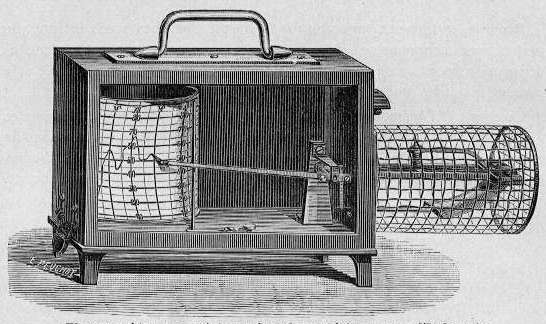

Exhibit 463 is a recording thermometer based on a bimetallic strip exposed to the ambiente temperature in a mesh parallelepiped attached to the recording case. The recording has an eight day cycle corresponding to the rotational period of the cylinder on which the temperature is inscribed by a stylus attached to the temperature sensor and supplied with an ink reserve. The uniform rotation of the cylinder is assured by a clockwork mechanism wound with the key. For each period the cylinder is wrapped in millimeter paper to facilitate the correspondence time and temperature. The cylinder is visible through a window in the case which has a brass handle. See also exhibit 462.
ISCRIZIONI
- Incisione sul cilindro rotante: "Brevetés S.G.D.G. Paris" con "RF" dentro un cerchio
Dati Catalografici
| Data di costruzione: | --- |
|---|---|
| Data di carico: | Ignota |
| Nr. Inventario: | Ignoto (Ignoto) |
| Costruttore: | Richard Fréres |
| Materiale: | metallo, ottone, vetro |
| Dimensioni: | Scatola: 22 cm x 12 cm x 18 cm; Protezione della lamina bimetallica: 13 cm x 6 cm x 10 cm; Cilindro registratore: altezza 9 cm, diametro 9 cm |
| Conservazione: | cattivo (Non funziona: manca la lamina bimetallica) |
