DESCRIPTION
Exhibit 423 is L-C bridge designed by Anderson, improved by Fleming and used for measuring auto-inductance. According to Anderson, one inserts a known capacitance and determines the inductance by balancing the bridge in terms of the capacitance and the four resistances independent of the frequency. [1],
The method of Anderson was then perfected by Fleming to measure small inductances (of the order of μH) using small capacitances. [2]

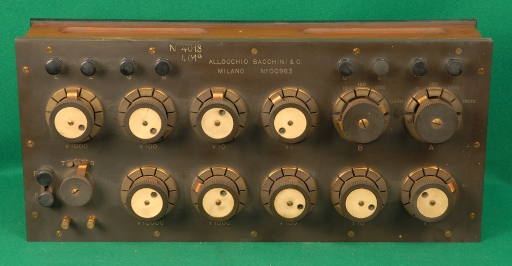

The instrument appears as a large case with 12 knobs: 11 corresponding to variable resistances of different maximum values and a three-way commutator (choice between galvanometer and head phones). There are 6 couples of terminals for external connections: 2 for the condenser, 2 for the inductance to measure, 2 for the galvanometer, 2 for connection to a alternating voltage source, 2 for the head phones and 2 incribed with "F" which are connected together with a metal bar. The case is completely closed but has four openings in the side walls covered with mesh.
ISCRIZIONI
- Allocchio Bacchini - Milano inciso sulla superficie superiore
BIBLIOGRAPHY
- [1] Anderson, " Phil. Mag." (3) 31, p. 329, 1891.
- [2] Fleming, "Phil. Mag.", (6), 7, p. 586, 1904.
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | 1923-03-05 |
Nr. Inventario: | 4018/4019 (Generale dal 1874) |
Costruttore: | Allocchio Bacchini |
Materiale: | legno, ottone |
Dimensioni: | 56 cm x 12 cm x 25 cm |
Conservazione: | buono |
