DESCRIPTION

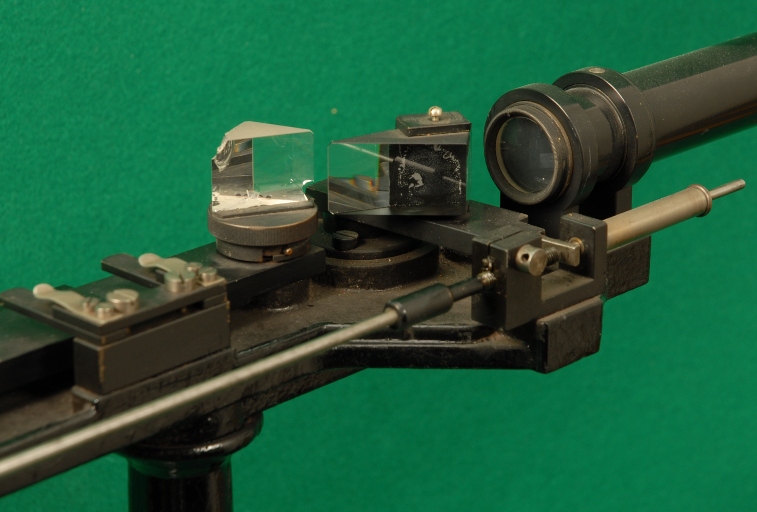

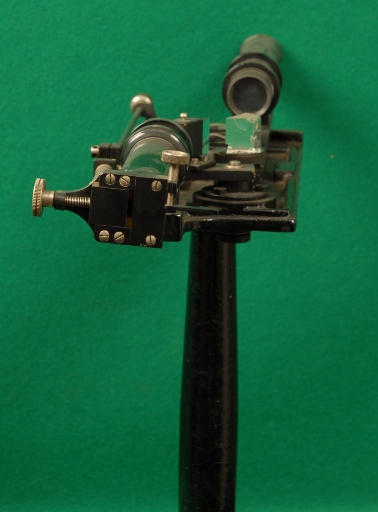

Exhibit 401 is an interferometer utilized to demonstrate complex luminous structures. It was used in spectroscopy combined with a magnetic field to study the Zeeman effect since it had a high resolutive power. Oriented on a platform there are a collimator and a telescope. Between the two there is a deviation prism that can be rotated by a screw. A second prism disperses the light in the direction of the telescope. A monochromatic ray, after passing through the collimater and the prisms, is reflected and rifracted several time in a laminar structure designed by Lummer e Gehrcke (see exhibit 556). The upper part of the interferometer is covered to avoid ambient light. The apparatus rests on a heavy iron base.

ISCRIZIONI

Sul coperchio è inciso: "R. Fuess, Berlin-Steglitz"

BIBLIOGRAPHY

[1] Born, Max; Wolf, Emil "7.6.5 The Lummer–Gehrcke interferometer". Principles of Optics (7th ed.). Cambridge University Press
