DESCRIPTION
Exhibit 168 is a Kohlrausch bridge that works like a Wheatstone bridge but is designed for measuring resistances of liquids in a cell or also solids. It is powered by a spark coil at about 1000 Hz to avoid electrolytic polarization at the electrodes and the balanced condition is revealed by zero sound in a set of earphones. The balance point is found by moving a cursor along a graduated platinum wire along which is distributed the entire potential difference of the spark coil.

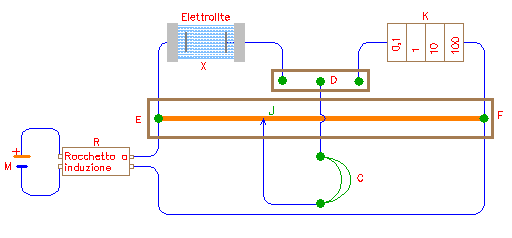

IF (J in fig. 3) is the balance point, that is minimum sound:
where X is the resistance of the liquid;
L1 is the distance E - J;
L2 is the distance J - F;
ISCRIZIONI

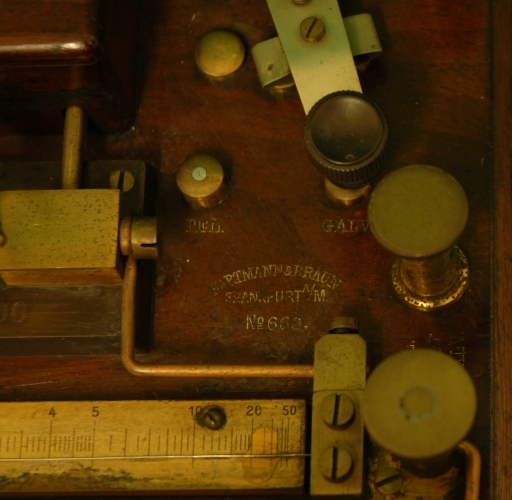

- Sulla base di legno è inciso il nome del costruttore "Hartmann & Braun - Frankfurt A/M"
- Numero inciso sotto il nome del costruttore: 668
- Scritta sotto la base di legno: 400/150
BIBLIOGRAPHY

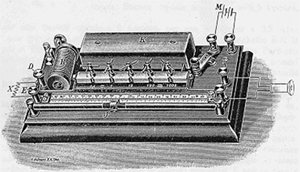

- [1] L. Graetz, "L'Elettricità e le sue Applicazioni", pag.90
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | 1898-03-14 |
Nr. Inventario: | Cons. 179 (Consorzio Univ. di Torino) |
Costruttore: | Hartmann & Braun |
Materiale: | metallo, legno |
Dimensioni: | 34 cm x 18 cm x 9 cm |
Conservazione: | buono (Manca uno spinotto e l'indice metallico che scorre sul filo di platino è rotto. ) |
