DESCRIPTION
Exibit 935 is a recording barometer that measures and records the atmospheric pressure useful for weather forcasts.

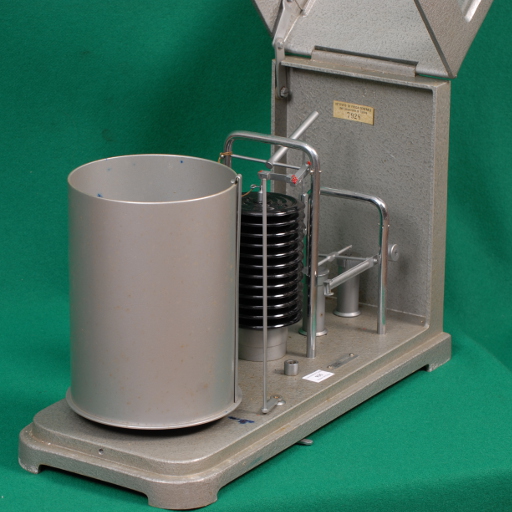

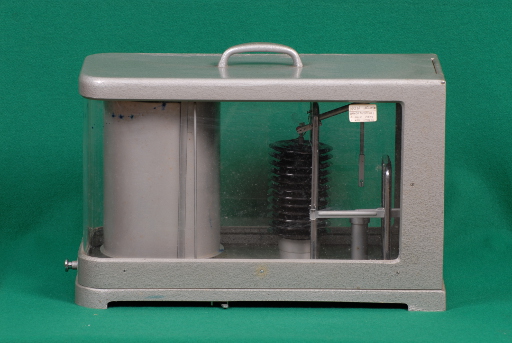

It consists of a movable stylus, a group of 12 bellows that react to the atmospheric pressure and a rotating drum. It is enclosed in a metallic container with lid and with glass sides.
The sensitive element consists of the 12 bellows fixed on the base and attached to an amplifying lever on top that moves the stylus which traces a graph on the millimeter paper wound on the rotating drum.
The rotating drum on which is fixed the millimeter paper (13 cm diameter, 18 cm high) is controlled by a clock mechanism to complete a revolution is seven days. The result is a recording of the atmospheric pressure for a week.

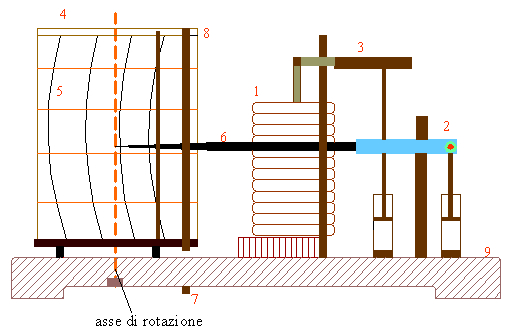

The principal parts of the barometer are shown in design-1. Le parti principali del barografo sono mostrate nel Disegno-1.
ISCRIZIONI
- All'interno è presente una targhetta con scritto "SIAP¶
Bologna 260193"
BIBLIOGRAPHY
- [1] Vedi estratto dal catalogo SIAP ([68.89KB] pdf )
Dati Catalografici
Data di costruzione: | Seconda metà secolo XX |
---|---|
Data di carico: | 1974-06-28 |
Nr. Inventario: | 7928 (Generale dal 1874) |
Costruttore: | SIAP |
Materiale: | metallo, vetro, bakelite??? |
Dimensioni: | Ingombro totale: 41 cm x 17,5 cm x 26 cm; Tamburo: altezza: 18 cm, Diametro: 13 cm; Capsula: altezza:10 cm, diametro:7 cm, numero di elementi: 12 |
Conservazione: | cattivo (Il meccanismo della leva è rotto.) |
