» Carcano Barometer (0649)
Immagini
DESCRIPTION

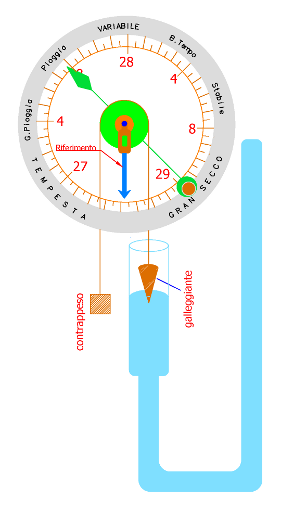

Exhibit 649 is a barometer calibrated directly in meteorological previsions. It is based on a stylus floating on a U-shaped mercury column exposed to the atmospheric pressure. The stylus is connected directly to the direct reading dial by a pulley which supports a balancing weight on the opposite side (now missing). The instrument is mounted on a decorated wood support which covers the mercury column with a small door and allows the instrument to hang vertically. Above the dial there is space for a thermometer which covers the temperature range from 36° to 68° C. The meteorological previsions are: storm, rain, variable, fine, and very dry. They are read through a glass window above which there is a manual dial for reference changes
ISCRIZIONI
- Sul Barometro:
Carcano, Rue Nve. St. Denis no.5 Paris - Sul Termometro:
In alto:Thermomètre
In basso a sinistra: Réaumur
In basso a destra: centigrade
In corrispondenza dello zero: GLACE
In corrispondenza di 34 °C: Bain
In corrispondenza di -7 °C: Riviere glacee
In corrispondenza di 14 °C: Temp.re
BIBLIOGRAPHY
- [1] URL [ http://museo.liceofoscarini.it/virtuale/barometri.html ]
- [2] Mara Miniati (CUR.), " Museo di storia della scienza, Firenze. catalogo", 04/1991, Giunti Editore
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | Ignota |
Nr. Inventario: | Ignoto (Ignoto) |
Costruttore: | Carcano |
Materiale: | legno, metallo, vetro, mercurio, alcool |
Dimensioni: | Altezza complessiva: 92 cm; Larghezza massima: 30 cm. |
Conservazione: | buono (
|
