» Righi's Pendolum (0631)
Immagini
DESCRIPTION

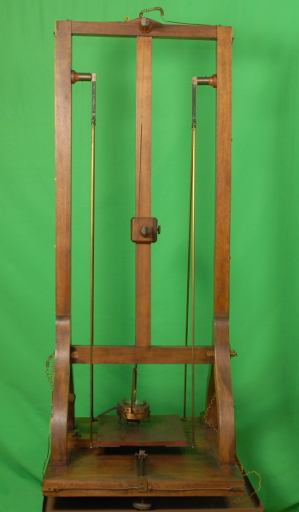

Exhibit 631 is a double pendulum designed by Augusto Righi (1850-1920) around 1890 to demonstrate the composition of two harmonic motions on orthogonal axes of equal and unequal frequencies and visualize the resulting Lissajous figures.The instrument consists essentially of two pendula, one free to oscillate parallel to the mounting plane and one in the perpendicular direction. The first has a mass consisting of a lead ring containing a funnel, the second a rectangular wood panel which oscillates below the lead ring. To generate a Lissajous figure, the funnel is filled with sand which falling on the oscillating panel generates the Lissajous figure. The lead ring is suspended on rods that can be varied in length to vary the frequency while the second pendulum has fixed frequency. Both oscillating systems are controlled by switches that depend on the relative frequencies.ISCRIZIONI

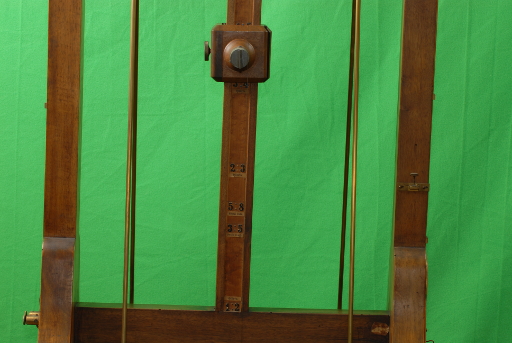

- Sul Fianco sono riportati, dal basso, i rapporti di oscillazione:
- 1:2 Ottava
- 3:5 Sesta mag.
- 5:8 Sesta min.
- 2:3 Quinta
- 3:4 Quarta
- 4:5 Terza mag.
- 5:6 Terza min.
- 15:16 Semit. mi.
- 1:1 Unisono
BIBLIOGRAPHY
- [1] Bartorelli, "Apparecchio da Lezione per la composizione delle Oscillazioni pendolari, Nota del Prof. Augusto Righi." Il Nuovo Cimento, Tomo 35 -- gennaio 1894. pgg 276 -- 280 ([1.20MB] pdf )
- [2] Il Nuovo Cimento, Tomo 36 -- Luglio 1894. (per l'immagine-2) ([395.37KB] pdf )
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | Ignota |
Nr. Inventario: | Ignoto (Ignoto) |
Costruttore: | Costruttore sconosciuto |
Materiale: | legno, rame, metallo |
Dimensioni: | Base: 95 cm x 68 cm x 40 cm; Pendolo: 95 cm x 68 cm x 165 cm |
Conservazione: | buono |
