DESCRIPTION

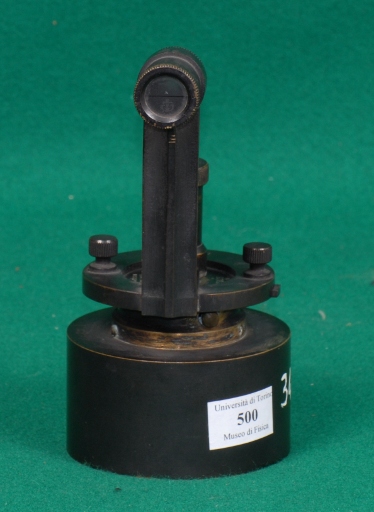

Exhibit 500 is a lamp, known as the Hefner lamp, approved by the Physikalish-Technichen Reichsanstalt as the standard German photometric luminous source. [1] [2]. The lamp burns amyl acetate .
The solid wick fills completely a tube of internal diameter 8 mm. On the inside there is an optical device for measuring the height of the flame which must be 40 mm.
The unit of luminous intensity was the hefner (HK), called also 'hefnerkerze' whose value is equal to 0.903 candles (cd SI)
ISCRIZIONI

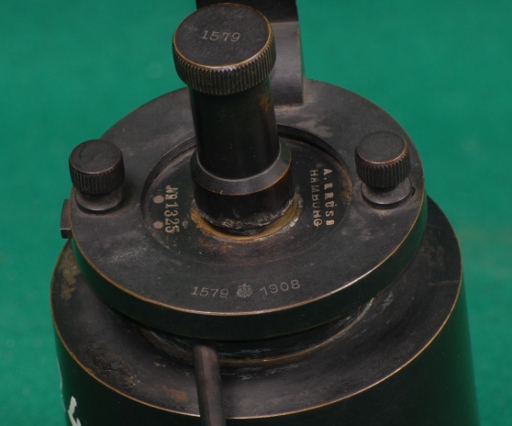

- Incisioni sulla base:
1579 (logo del costruttore) 1908 - 1325 (logo del costruttore) 1579 A. KRUSS HAMBURG

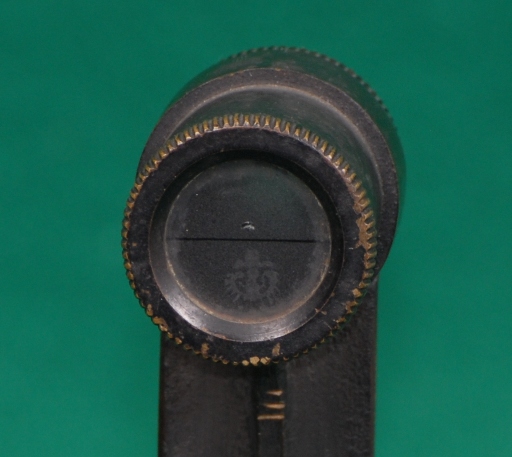

- Sulla lente dell'oculare è inciso il logo del crostruttore
BIBLIOGRAPHY
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | 1908-07-30 |
Nr. Inventario: | 3424 (Generale dal 1874) |
Costruttore: | A. Kruss |
Materiale: | metallo, vetro |
Dimensioni: | Diametro della base: 8 cm; Altezza complessiva: 14 cm; Lunghezza del misuratore: 3,5 cm; Diametro del misuratore: 1,8 cm |
Conservazione: | ottimo (Lo stoppino è presente, mentre manca l'acetato di amile.) |
