» Monowire Electrometer (0495)
Immagini
DESCRIPTION

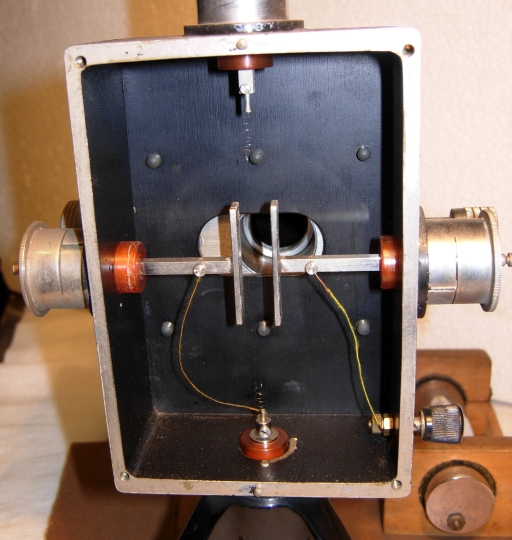

exhibit 495 is a single wire electrometer used to measure small voltages and currents. It consists of a condenser formed by two metal plates separated by a distance which is adjustable using micrometric screws on both sides of the apparatus. Between the plates, there is a thin conducting wire maintained in tension by two springs soldered to its ends.

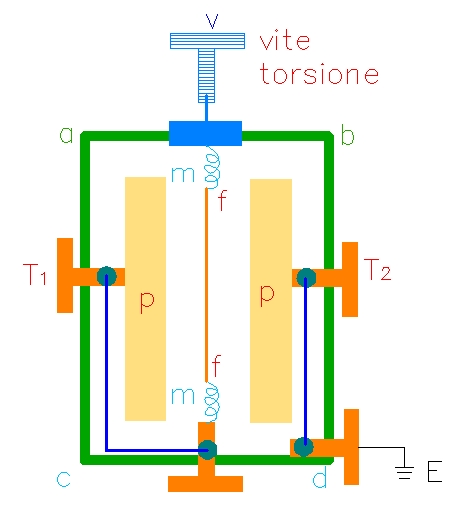

The entire apparatus is enclosed in a metal case (abcd) with two external terminals T1 e T2. The wire is displaced to the left or to the right in proportion to the potential difference between the wire and the case. This displacement is observed with a telescope (see photo-1). There is a window with a lens which facilitates illuminating the wire. There is also a container of a hydroscopic substance which keeps dry the air in the case.
ISCRIZIONI
- È presente una targhetta fissata sulla base: "VASCHETTI e MASERA ISTITUTO DI FISICA VIA PIETRO GIURIA 1 TORINO".
Vedi Foto-2.
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | 1939-11-23 |
Nr. Inventario: | Cons. 468 (Consorzio Univ. di Torino) |
Costruttore: | Vaschetti e Masera |
Materiale: | acciaio, vetro, ferro |
Dimensioni: | Custodia: 25 cm x 31 cm x 33 cm; Asse su cui fissare lo strumento: 22.5 cm x 30 cm |
Conservazione: | buono (Due dei tre serbatoi di vetro sono incrinati e non possono essere avvitati all'elettrometro.) |
