» Eight-Day Recording Thermometer (0462)
Immagini
DESCRIPTION

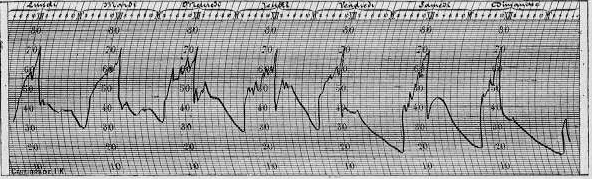

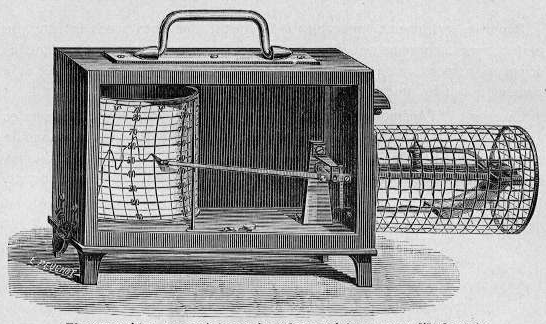

Exhibit 462 is a recording thermometer based on a bimetallic strip exposed to the ambiente temperature in a mesh cylinder attached to the recording case. The recording has an eight day cycle corresponding to the rotational period of the cylinder on which the temperature is inscribed by a stylus attached to the temperature sensor and supplied with an ink reserve. The uniform rotation of the cylinder is assured by a clockwork mechanism wound with the key. For each period the cylinder is wrapped in millimeter paper to facilitate the correspondence time and temperature. The cylinder is visible through a window in the case which has a brass handle. See also exhibit 463.
ISCRIZIONI
- Inciso sul cilindro rotante: "Brevetés S.G.D.G. Paris" con "RF" dentro un cerchio
BIBLIOGRAPHY
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | Ignota |
Nr. Inventario: | Ignoto (Ignoto) |
Costruttore: | Richard Fréres |
Materiale: | metallo, ottone, vetro |
Dimensioni: | Scatola: 23 cm x 12 cm x 17 cm; Cilindro registratore: lunghezza 9 cm, diametro 10 cm; Protezione della lamina bimetallica: lunghezza 12 cm; diametro 8 cm |
Conservazione: | buono (Manca la chiave per caricare il cilindro rotante.) |
