DESCRIPTION

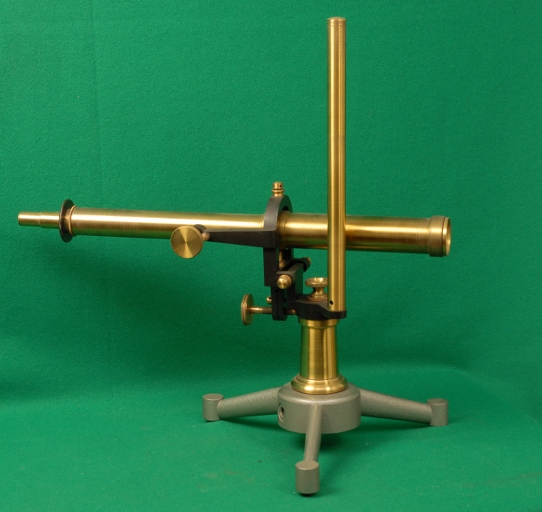

Exhibit 443 is an apparatus consisting of a telescope that can slide on a column on which is fixed a horizontal graduated ruler (missing in this case). In use one adjusts the telescope to focus on the graduations on the ruler. When a light ray is incident on a mirror in a measuring instrument, the ray arrives on the ruler. If the mirror rotates through an angle (θ), the reflected ray is deflected φ=2θ. This method of measuring small rotations is due to Poggendorff. For a complete setup, see exhibit 371.
Dati Catalografici
Data di costruzione: | Inizio XIX Secolo |
---|---|
Data di carico: | 1914-04-28 |
Nr. Inventario: | 3724 (Generale dal 1874) |
Costruttore: | Costruttore sconosciuto |
Materiale: | ottone, ghisa, ferro, vetro |
Dimensioni: | Base treppiede triangolare equilatero lato: 30cm; Altezza complessiva: 48 cm Cannocchiale: lunghezza: 50 cm; Diametro obiettivo: 4,5 cm; Diametro oculare: 1,5cm |
Conservazione: | buono (Manca il regolo.) |
