» Oersted vertical Apparatus (0388)
Immagini
DESCRIPTION

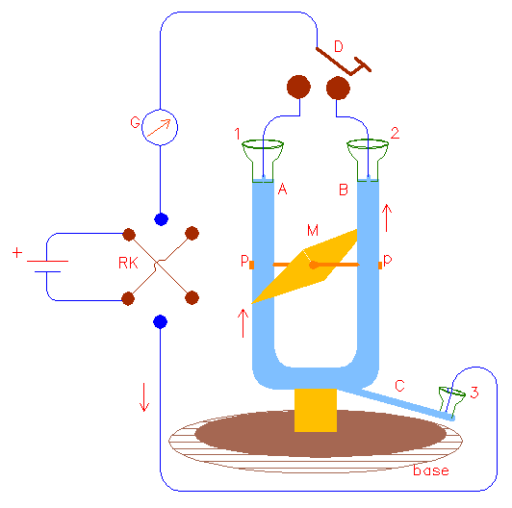

Exhibit 388 is the vertical Oersted apparatus, analogous to the horizontal version, with the difference that here the magnetic needle rotates about a horizontal axis. The device consists of a brass bar in a-U form with a circular brass base and small ivory cups (1, 2, and 3) in which mercury provided secure contacts. There is a battery and a galvanometer G to ascertain the current flow, an invertor RK (reversing key) to invert the current obtained from the battery and a switch D (deviater) to force the current from one arm A to the other B. In this configuration the magnetic field acting on the magnetic needle could be obtained in 4 different ways leading to two different orientations of the magnetic needle.BIBLIOGRAPHY
- [1] Atkinson and Reinold, Ganot's Physics, Longmans,Green, and Co. London,Bombay 1920. §835, page 839.
- [2] Franco Erdas, Giuseppe Baggiani, Gli strumenti del Museo di Fisica - Elettromagnetismo, Università degli studi di Cagliari. §43, pag. 50.
Dati Catalografici
| Data di costruzione: | --- |
|---|---|
| Data di carico: | 1856-12-31 |
| Nr. Inventario: | 995 (Generale dal 1874) 627 (Antico inv. Gabinetto Fis) |
| Costruttore: | Costruttore sconosciuto |
| Materiale: | ottone, metallo, avorio |
| Dimensioni: | Diametro base: 65 mm ; altezza complessiva: 200 mm |
| Conservazione: | buono (Manca l'ago magnetico.) |
