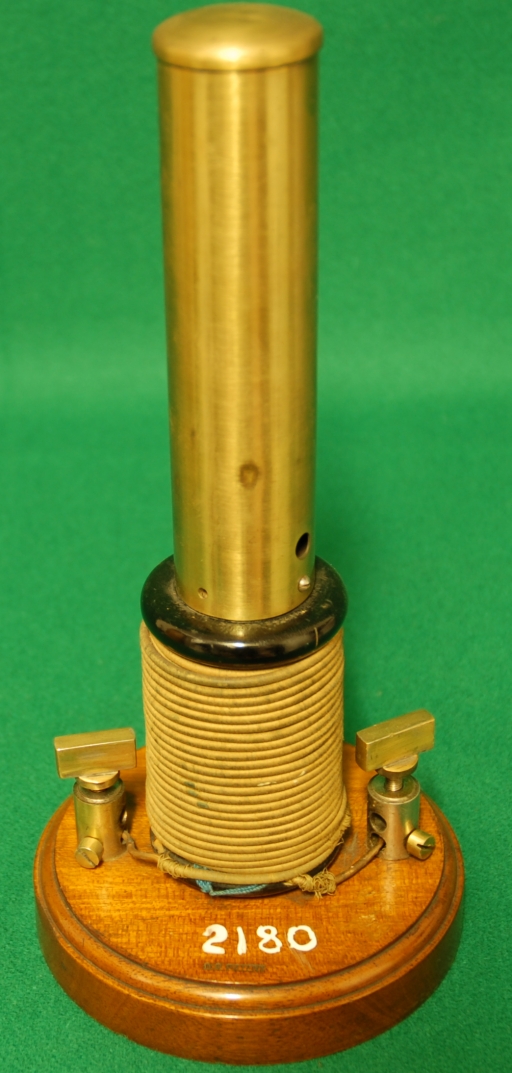

Exhibit 160 is a Kohlrausch ammeter, the scheme of which is shown in design 1. It consists of a vertical solenoid S, composed of 24 spirals of insulated wire wound on a cylinder and welded to two terminals T1 and T2 (marked + and- on the wood base). Above the solenoid, there is a brass cylinder inside of which there is a solid iron cylindrical bar F suspended by a vertical spring E and carrying a dial visible through a lateral window in the brass cylinder. In the same window there is a graduated scale which varies from 1 to 10 ampere. When the current to be measured flows in the solenoid, the iron bar magnetized by induction descends inside the solenoid to a position in equilibrium between the attraction of the solenoid magnet field and the extension of the spring E. In this position, the dial indicates the flowing current in amperes.ISCRIZIONI

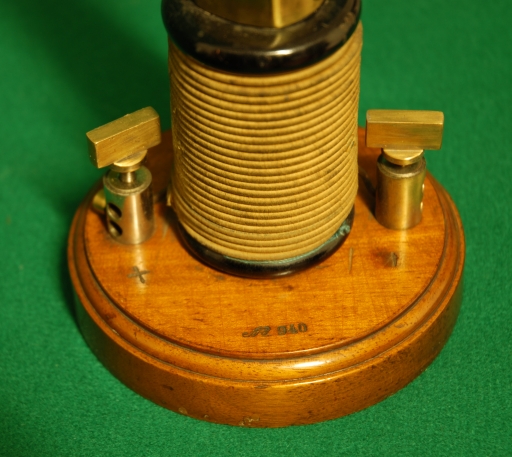

- D.R.Patent n.o 940
BIBLIOGRAPHY
- [1] ORESTE MURANI,"Trattato Elementare di Fisica", VOL II, ULRICO HOEPLI Milano (1906). (Pag. 530-531)
Dati Catalografici
Data di costruzione: | --- |
---|---|
Data di carico: | 1887-06-01 |
Nr. Inventario: | 2180 (Generale dal 1874) |
Costruttore: | Leybold |
Materiale: | ottone, ferro, legno, vetro |
Dimensioni: | Basamento: Diametro 115 mm; Altezza 240 mm |
Conservazione: | buono (Manca una vite per fissare il cilindro di copertura.) |
