» Majocchi universal Galvanometer (0533)
Immagini
DESCRIPTION

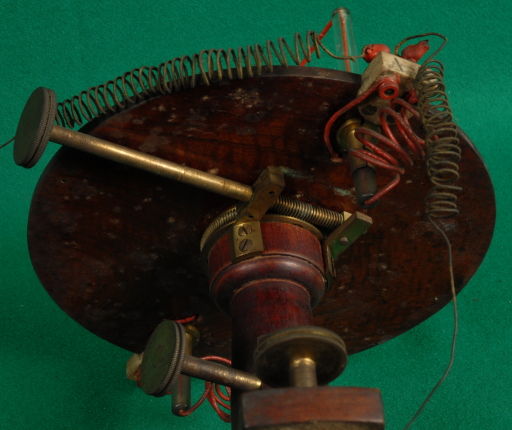

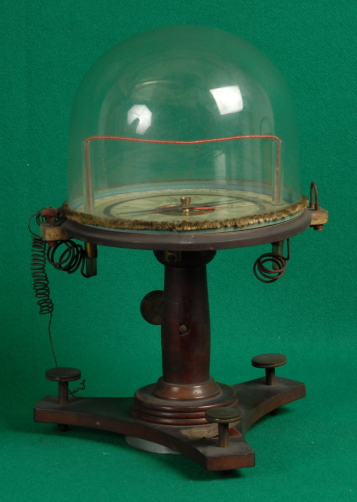

Exhibit 533 is a universal galvanometer of the moving needle type in which the current to be measured creates a magnetic field in which a magnetized needle will orient itself into a position of equilibrium between the induced field and the earth's magnetic field. Here the induced field derives from a vertical coil in which the current to be measured flows. It was designed by Giovanni Alessandro Maiocchi (1795-1854) who held the physics chair at Torino from 1851 until his death. It has a wood base with three adjustable screws for leveling weighted with a metal disk (perhaps of lead). To protect the instrument the base can support a glass bell jar. Under the support there is a screw for making a fine adjustment of the alignment with the earth's magnetic field.Dati Catalografici
| Data di costruzione: | --- |
|---|---|
| Data di carico: | 1841-01-19 |
| Nr. Inventario: | 970 (Generale dal 1874) 494 (Antico inv. Gabinetto Fis) |
| Costruttore: | Costruttore sconosciuto |
| Materiale: | legno, metallo, rame |
| Dimensioni: | Diametro della bussola: 17,5 cm; Altezza complessiva: 30 cm |
| Conservazione: | buono (I fili sono staccati) |
